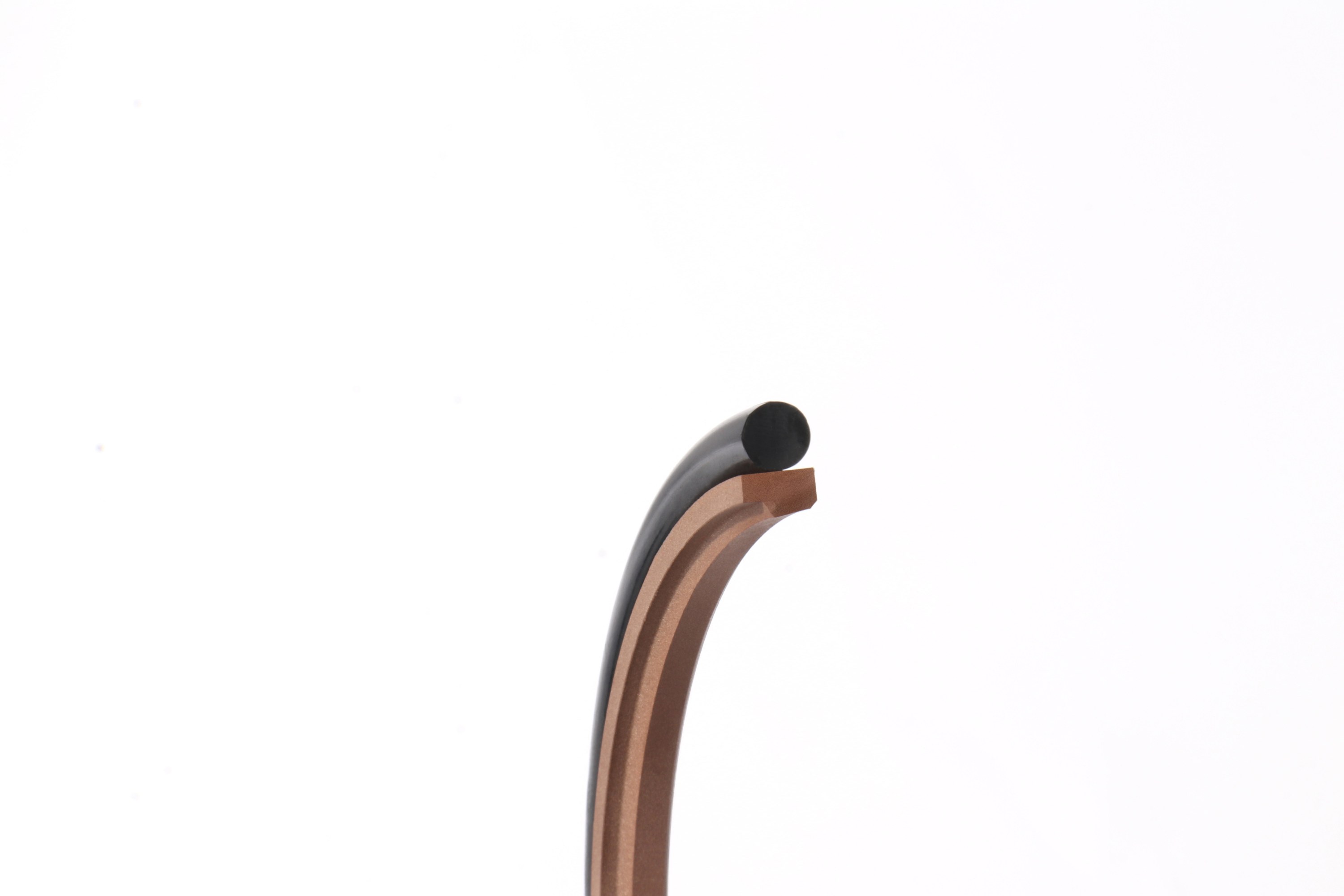

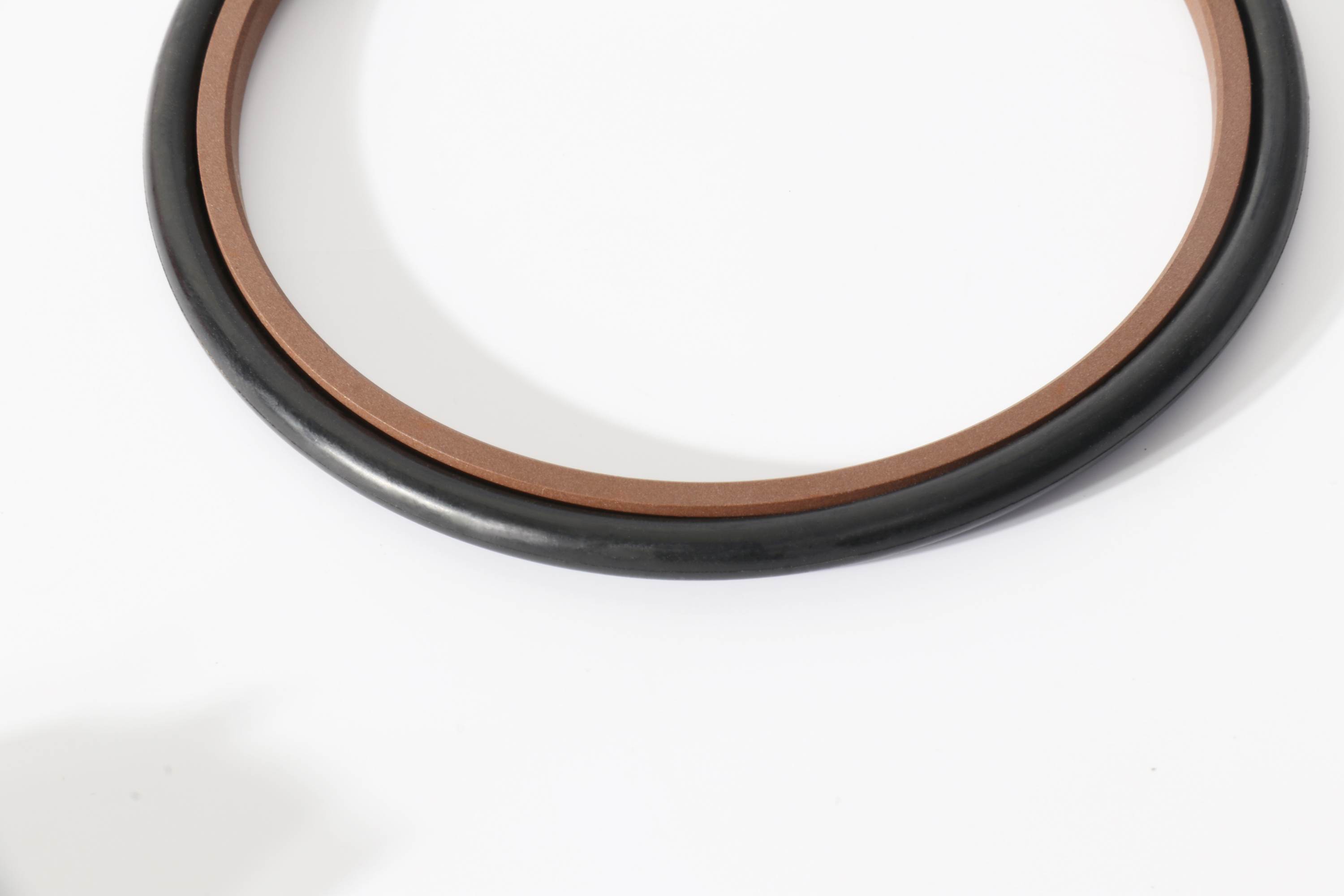

HBTS
优势与特点
该产品适用于单向活塞杆密封，可以多个串联使用，以承受更高压力。摩擦系数小，有无润滑都可以工作。
该产品作为缓冲密封配合U型密封使用，不建议作为单独密封使用。根据工作压力选取截面，理论压力越大截面越大。
材料：
PTFE
颜色：
棕
数量：
技术与参数
技术参数
| 材料 | 温度 | 压力 | 线速度 | 颜色 |
| PTFE+NBR | -40°C + 110°C | <500 | <5.0 | 棕 |
| PTFE+FKM | -30°C + 200°C | <500 | <5.0 | 棕 |

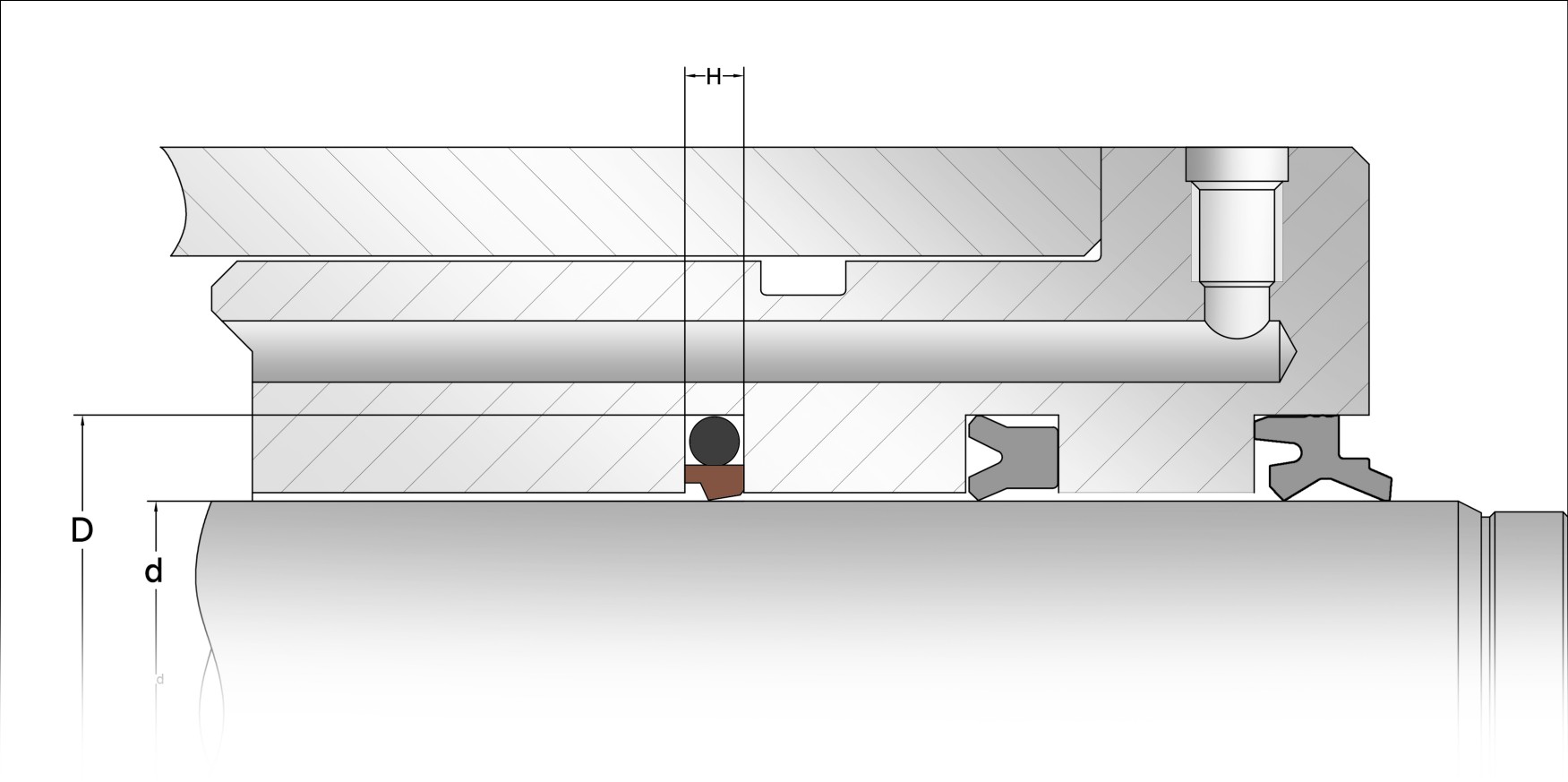

CAD应用图
尺寸规格
| Specification | d | D | h |
| HBTS 5x9.9x2.2 | 5 | 9.9 | 2.2 |
| HBTS 6x10.9x2.2 | 6 | 10.9 | 2.2 |
| HBTS 8x12.9x2.2 | 8 | 12.9 | 2.2 |
| HBTS 8x15.3x3.2 | 8 | 15.3 | 3.2 |
| HBTS 10x14.9x2.2 | 10 | 14.9 | 2.2 |
| HBTS 10x17.3x3.2 | 10 | 17.3 | 3.2 |
| HBTS 12x19.3x3.2 | 12 | 19.3 | 3.2 |
| HBTS 14x18.9x2.2 | 14 | 18.9 | 2.2 |
| HBTS 14x21.3x3.2 | 14 | 21.3 | 3.2 |
| HBTS 15x19.9x2.2 | 15 | 19.9 | 2.2 |
| HBTS 15x22.3x3.2 | 15 | 22.3 | 3.2 |
| HBTS 16x23.3x3.2 | 16 | 23.3 | 3.2 |
| HBTS 16x20.9x2.2 | 16 | 20.9 | 2.2 |
| HBTS 18x22.9x2.2 | 18 | 22.9 | 2.2 |
| HBTS 18x25.3x3.2 | 18 | 25.3 | 3.2 |
| HBTS 19x29.7x4.2 | 19 | 29.7 | 4.2 |
| HBTS 20x27.3x3.2 | 20 | 27.3 | 3.2 |
| HBTS 20x30.7x4.2 | 20 | 30.7 | 4.2 |
| HBTS 22x29.3x3.2 | 22 | 29.3 | 3.2 |
| HBTS 22x32.7x4.2 | 22 | 32.7 | 4.2 |
| HBTS 24x31.3x3.2 | 24 | 31.3 | 3.2 |
| HBTS 25x32.3x3.2 | 25 | 32.3 | 3.2 |
| HBTS 25x35.7x4.2 | 25 | 35.7 | 4.2 |
| HBTS 26x36.7x4.2 | 26 | 36.7 | 4.2 |
| HBTS 28x35.3x3.2 | 28 | 35.3 | 3.2 |
| HBTS 28x38.7x4.2 | 28 | 38.7 | 4.2 |
| HBTS 30x37.3x3.2 | 30 | 37.3 | 3.2 |
| HBTS 30x40.7x4.2 | 30 | 40.7 | 4.2 |
| HBTS 32x39.3x3.2 | 32 | 39.3 | 3.2 |
| HBTS 32x42.7x4.2 | 32 | 42.7 | 4.2 |
| HBTS 35x42.3x3.2 | 35 | 42.3 | 3.2 |
| HBTS 35x45.7x4.2 | 35 | 45.7 | 4.2 |
| HBTS 36x43.3x3.2 | 36 | 43.3 | 3.2 |
| HBTS 36x46.7x4.2 | 36 | 46.7 | 4.2 |
| HBTS 38x48.7x4.2 | 38 | 48.7 | 4.2 |
| HBTS 38x53.1x6.3 | 38 | 53.1 | 6.3 |
| HBTS 40x50.7x4.2 | 40 | 50.7 | 4.2 |
| HBTS 40x55.1x6.3 | 40 | 55.1 | 6.3 |
| HBTS 42x52.7x4.2 | 42 | 52.7 | 4.2 |
| HBTS 42x57.1x6.3 | 42 | 57.1 | 6.3 |
| HBTS 45x55.7x4.2 | 45 | 55.7 | 4.2 |
| HBTS 45x60.1x6.3 | 45 | 60.1 | 6.3 |
| HBTS 48x58.7x4.2 | 48 | 58.7 | 4.2 |
| HBTS 48x63.1x6.3 | 48 | 63.1 | 6.3 |
| HBTS 50x60.7x4.2 | 50 | 60.7 | 4.2 |
| HBTS 50x65.1x6.3 | 50 | 65.1 | 6.3 |
| HBTS 52x62.7x4.2 | 52 | 62.7 | 4.2 |
| HBTS 52x67.1x6.3 | 52 | 67.1 | 6.3 |
| HBTS 54x69.1x6.3 | 54 | 69.1 | 6.3 |
| HBTS 55x70.1x6.3 | 55 | 70.1 | 6.3 |
| HBTS 56x66.7x4.2 | 56 | 66.7 | 4.2 |
| HBTS 56x71.1x6.3 | 56 | 71.1 | 6.3 |
| HBTS 58x73.1x6.3 | 58 | 73.1 | 6.3 |
| HBTS 60x70.7x4.2 | 60 | 70.7 | 4.2 |
| HBTS 60x75.1x6.3 | 60 | 75.1 | 6.3 |
| HBTS 63X73.7X4.2 | 63 | 73.7 | 4.2 |
| HBTS 63X78.1X6.3 | 63 | 78.1 | 6.3 |
| HBTS 65X80.1X6.3 | 65 | 80.1 | 6.3 |
| HBTS 67X77.7X4.2 | 67 | 77.7 | 4.2 |
| HBTS 70X80.7X4.2 | 70 | 80.7 | 4.2 |
| HBTS 70X85.1X6.3 | 70 | 85.1 | 6.3 |
| HBTS 72X82.7X4.2 | 72 | 82.7 | 4.2 |
| HBTS 75X85.7X4.2 | 75 | 85.7 | 4.2 |
| HBTS 75X90.1X6.3 | 75 | 90.1 | 6.3 |
| HBTS 80X90.7X4.2 | 80 | 90.7 | 4.2 |
| HBTS 80X95.1X6.3 | 80 | 95.1 | 6.3 |
| HBTS 83X93.7X4.2 | 83 | 93.7 | 4.2 |
| HBTS 85X100.1X6.3 | 85 | 100.1 | 6.3 |
| HBTS 86X96.7X4.2 | 86 | 96.7 | 4.2 |
| HBTS 90X100.7X4.2 | 90 | 100.7 | 4.2 |
| HBTS 90X105.1X6.3 | 90 | 105.1 | 6.3 |
| HBTS 92X102.7X4.2 | 92 | 102.7 | 4.2 |
| HBTS 95X105.7X4.2 | 95 | 105.7 | 4.2 |
| HBTS 95X110.1X6.3 | 95 | 110.1 | 6.3 |
| HBTS 100X110.7X4.2 | 100 | 110.7 | 4.2 |
| HBTS 100X115.1X6.3 | 100 | 115.1 | 6.3 |
| HBTS 105X115.7X4.2 | 105 | 115.7 | 4.2 |
| HBTS 105X120.1X6.3 | 105 | 120.1 | 6.3 |
| HBTS 110X120.7X4.2 | 110 | 120.7 | 4.2 |
| HBTS 110X125.1X6.3 | 110 | 125.1 | 6.3 |
| HBTS 110X130.5X8.1 | 110 | 130.5 | 8.1 |
| HBTS 112X127.1X6.3 | 112 | 127.1 | 6.3 |
| HBTS 115X125.7X4.2 | 115 | 125.7 | 4.2 |
| HBTS 115X130.1X6.3 | 115 | 130.1 | 6.3 |
| HBTS 118X133.1X6.3 | 118 | 133.1 | 6.3 |
| HBTS 120X135.1X6.3 | 120 | 135.1 | 6.3 |
| HBTS 120X130.7X4.2 | 120 | 130.7 | 4.2 |
| HBTS 125X135.7X4.2 | 125 | 135.7 | 4.2 |
| HBTS 125X140.1X6.3 | 125 | 140.1 | 6.3 |
| HBTS 129X139.7X4.2 | 129 | 139.7 | 4.2 |
| HBTS 130X140.7X4.2 | 130 | 140.7 | 4.2 |
| HBTS 130X145.1X6.3 | 130 | 145.1 | 6.3 |
| HBTS 135X145.7X4.2 | 135 | 145.7 | 4.2 |
| HBTS 135X150.1X6.3 | 135 | 150.1 | 6.3 |
| HBTS 140X150.7X4.2 | 140 | 150.7 | 4.2 |
| HBTS 140X155.1X6.3 | 140 | 155.1 | 6.3 |
| HBTS 145X155.7X4.2 | 145 | 155.7 | 4.2 |
| HBTS 145X160.1X6.3 | 145 | 160.1 | 6.3 |
| HBTS 150X165.1X6.3 | 150 | 165.1 | 6.3 |
| HBTS 160X175.1X6.3 | 160 | 175.1 | 6.3 |
| HBTS 160X180.5X8.1 | 160 | 180.5 | 8.1 |
| HBTS 165X180.1X6.3 | 165 | 180.1 | 6.3 |
| HBTS 170X180.7X4.2 | 170 | 180.7 | 4.2 |
| HBTS 170X185.1X6.3 | 170 | 185.1 | 6.3 |
| HBTS 175X190.1X6.3 | 175 | 190.1 | 6.3 |
| HBTS 180X190.7X4.2 | 180 | 190.7 | 4.2 |
| HBTS 180X195.1X6.3 | 180 | 195.1 | 6.3 |
| HBTS 180X200.5X8.1 | 180 | 200.5 | 8.1 |
| HBTS 190X200.7X4.2 | 190 | 200.7 | 4.2 |
| HBTS 190X205.1X6.3 | 190 | 205.1 | 6.3 |
| HBTS 200X215.1X6.3 | 200 | 215.1 | 6.3 |
| HBTS 200X220.5X8.1 | 200 | 220.5 | 8.1 |
| HBTS 205X220.1X6.3 | 205 | 220.1 | 6.3 |
| HBTS 210X225.1X6.3 | 210 | 225.1 | 6.3 |
| HBTS 220X235.1X6.3 | 220 | 235.1 | 6.3 |
| HBTS 220X240.5X8.1 | 220 | 240.5 | 8.1 |
| HBTS 230X245.1X6.3 | 230 | 245.1 | 6.3 |
| HBTS 230X250.5X8.1 | 230 | 250.5 | 8.1 |
| HBTS 240X255.1X6.3 | 240 | 255.1 | 6.3 |
| HBTS 240X260.5X8.1 | 240 | 260.5 | 8.1 |
| HBTS 250X270.5X8.1 | 250 | 270.5 | 8.1 |
| HBTS 260X284X8.1 | 260 | 284 | 8.1 |
| HBTS 270X290.5X8.1 | 270 | 290.5 | 8.1 |
| HBTS 270X294X8.1 | 270 | 294 | 8.1 |
| HBTS 275X299X8.1 | 275 | 299 | 8.1 |
| HBTS 280X300.5X8.1 | 280 | 300.5 | 8.1 |
| HBTS 280X304X8.1 | 280 | 304 | 8.1 |
| HBTS 290X310.5X8.1 | 290 | 310.5 | 8.1 |
| HBTS 290X314X8.1 | 290 | 314 | 8.1 |
| HBTS 300X324X8.1 | 300 | 324 | 8.1 |
| HBTS 310X334X8.1 | 310 | 334 | 8.1 |
| HBTS 320X344X8.1 | 320 | 344 | 8.1 |
| HBTS 330X354X8.1 | 330 | 354 | 8.1 |
| HBTS 340X364X8.1 | 340 | 364 | 8.1 |
| HBTS 350X374X8.1 | 350 | 374 | 8.1 |
| HBTS 360X384X8.1 | 360 | 384 | 8.1 |
| HBTS 370X394X8.1 | 370 | 394 | 8.1 |
| HBTS 380X404X8.1 | 380 | 404 | 8.1 |
| HBTS 390X414X8.1 | 390 | 414 | 8.1 |
| HBTS 400X424X8.1 | 400 | 424 | 8.1 |
| HBTS 410X434X8.1 | 410 | 434 | 8.1 |
| HBTS 420X444X8.1 | 420 | 444 | 8.1 |
| HBTS 430X454X8.1 | 430 | 454 | 8.1 |
| HBTS 440X464X8.1 | 440 | 464 | 8.1 |
| HBTS 450X474X8.1 | 450 | 474 | 8.1 |
| HBTS 460X484X8.1 | 460 | 484 | 8.1 |
| HBTS 470X494X8.1 | 470 | 494 | 8.1 |
| HBTS 480X504X8.1 | 480 | 504 | 8.1 |
| HBTS 490X514X8.1 | 490 | 514 | 8.1 |
| HBTS 500X524X8.1 | 500 | 524 | 8.1 |
| HBTS 550X574X8.1 | 550 | 574 | 8.1 |
| HBTS 600X624X8.1 | 600 | 624 | 8.1 |
| HBTS 650X677.3X9.5 | 650 | 677.3 | 9.5 |
| HBTS 700X724X8.1 | 700 | 724 | 8.1 |
| HBTS 740X767.3X9.5 | 740 | 767.3 | 9.5 |
| HBTS 800X827.3X9.5 | 800 | 827.3 | 9.5 |
| HBTS 850X877.3X9.5 | 850 | 877.3 | 9.5 |
| HBTS 900X927.3X9.5 | 900 | 927.3 | 9.5 |
| HBTS 950X977.3X9.5 | 950 | 977.3 | 9.5 |
